Ceramic Fully Lined Angle Valve Sunyeh

The main appearance design concept is from the perspective of fluid mechanics and aesthetics.

The inlet and outlet are designed with a trumpet mouthpiece to adjust the flow rate to reduce the erosion for outet, which accords with the principle of inertial flow direction of fluid mechanics medium, so that the flow of medium is smooth and achieves the purpose of reducing erosion loss.

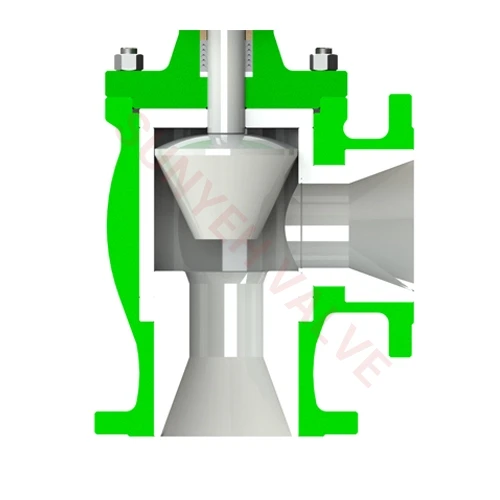

Sealing Seat: Valve seat is designed with inverted bucket hat, when fluid enters, valve spool can up and down fexible, so as to have good flow regulation; the valve seat can release the pressure when valve is cuting off, thus effectively reducing the damage caused by water hammer gravity impact of fluid reflux.

Spool: Designed by gravity theory (similar to the principle of natural flow of raindrops on umbrella); spool and seat have the same taper, which improves the sealing performance and leak-proof grade reaches class-Vl.

Stem: lt adopts the principle of mechanical plunger sunk-typed to design.

All the valve components are mechanical finishing products with spare parts of adequate, which greatly improves the traditional concept of one valve with one spare part.

It is a new type of angle valve that is ceramic fully-lined, it is the initial product in the world and can fill the angle valve market of domestic and foreign.

Its appearance color is environmental green, which conforms to the energy-saving and environmental protection concept of the product itself.

Metal protective shells can be coated with epoxy resin or nylon to meet the requirements of color recognition and corrosion resistance. Like stainless steel shells, it is allowed to be exposed to extremely harsh environments without external corrosive degradation. lt firmly surrounds ceramic components to prevent them from any possible damage. Pipeline pressure is absorbed by the shell instead of being transferred to the ceramic because all flange bolts are connected directly to the shell.

Sun Yeh aims at the control valves used under severe corrosion conditions (such as coal chemical industry, petrochemical industry, paper industry, polycrystalline silicon, organosilicon, various chemical industry, fertilizer industry, metal smelting, etc.)especially the application market investigation and evaluation of process angular control valves, which are not durable and have short service life. Our company decided to improve the existing problems of angle valves with its professional and technical capabilities. lt is used to improve the performance of angle valves under conditions of acid and alkali, corrosion, erosion and high temperature.
