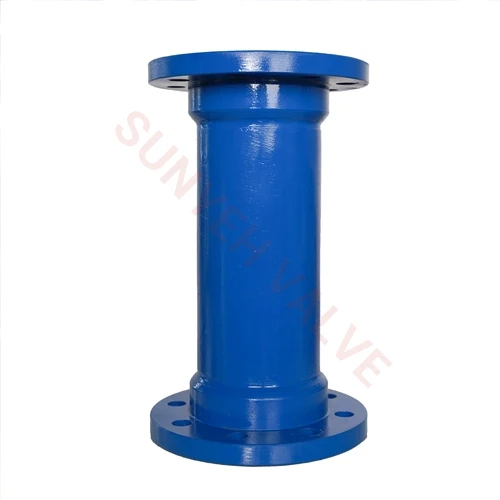

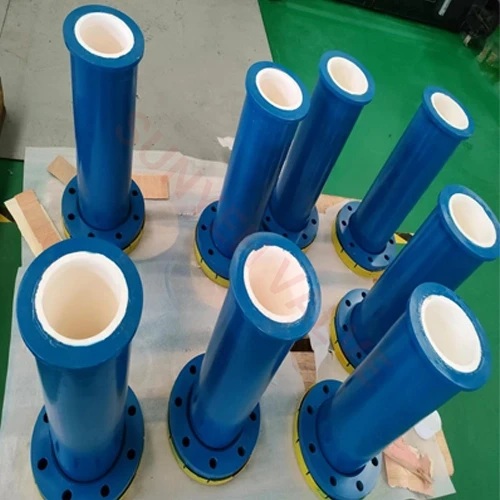

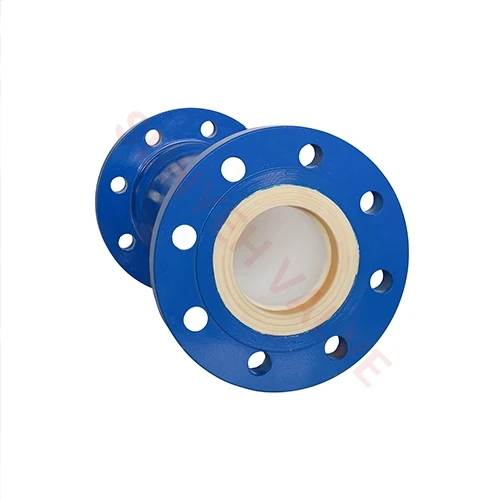

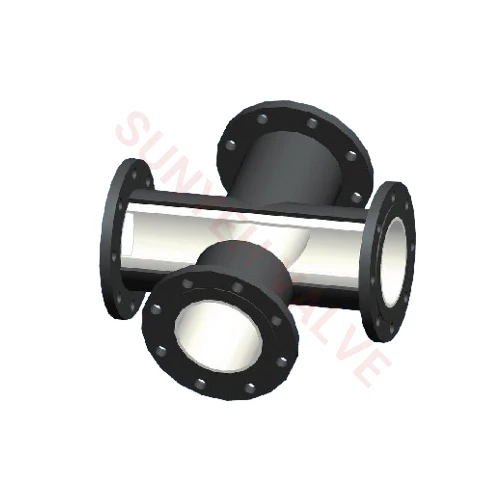

The abrasion-resistant ceramic pipeline, composed of alumina ceramic lined pipes (or zirconia) and seamless ceramic lined steel pipes with a special adhesive, forms a solid anti-wear layer. Abrasion resistant ceramic lined pipe offers abrasion, corrosion, and heat resistance, ideal for conveying abrasive and corrosive materials in various industries.

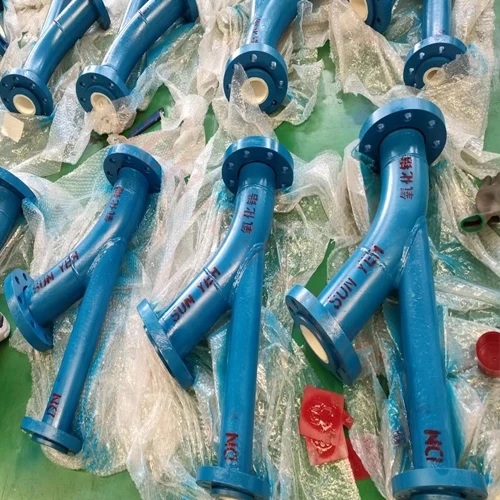

Our company Sun Yeh,one of the leading ceramic lined pipe manufacturers, can provide abrasion-resistant ceramic lined pipe such as ceramic lined carbon steel pipe, stainless steel, and ductile iron according to the specific operating conditions and requirements of the customers.

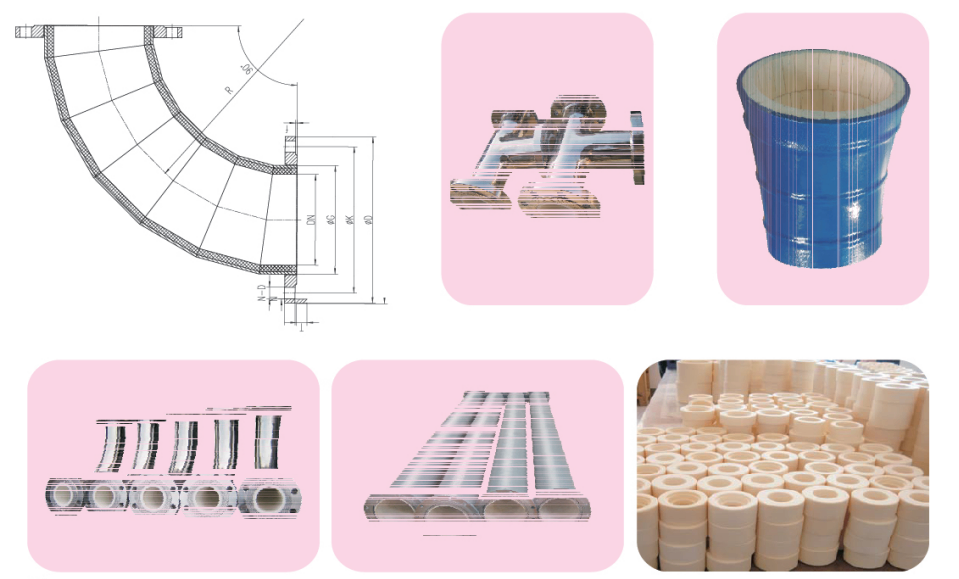

| DN | R | Steel pipe size | Ceramic size | ΦD | ΦK | ΦG | N-D | T | f |
| 15 | 1.5D/2D/2.5D | Φ32x3 | Φ25x5 | 95 | 65 | 45 | 4-Φ14 | 14 | 2 |
| 20 | 1.5D/2D/2.5D | Φ38x4 | Φ30x5 | 105 | 75 | 55 | 4-Φ14 | 16 | 2 |
| 25 | 1.5D/2D/2.5D | Φ45x5 | Φ35x5 | 115 | 85 | 65 | 4-Φ14 | 16 | 2 |
| 32 | 1.5D/2D/2.5D/3D | Φ50x4 | Φ42x5 | 140 | 100 | 76 | 4-Φ18 | 18 | 2 |
| 40 | 1.5D/2D/2.5D/3D | Φ60x5 | Φ50x5 | 150 | 110 | 84 | 4-Φ18 | 18 | 3 |
| 50 | 1.5D/2D/2.5D/3D | Φ73x6 | Φ61x6 | 165 | 125 | 99 | 4-Φ18 | 20 | 3 |
| 65 | 1.5D/2D/2.5D/3D | Φ89x5 | Φ79x7 | 185 | 145 | 118 | 4-Φ18 | 20 | 3 |
| 80 | 1.5D/2D/2.5D/3D/3.5D | Φ108x5 | Φ98x9 | 200 | 160 | 132 | 8-Φ18 | 20 | 3 |
| 100 | 1.5D/2D/2.5D/3D/3.5D | Φ133x6 | Φ121x10 | 220 | 180 | 156 | 8-Φ18 | 22 | 3 |
| 125 | 1.5D/2D/2.5D/3D/3.5D/4D | Φ159x7 | Φ145x10 | 250 | 210 | 184 | 8-Φ18 | 22 | 3 |
| 150 | 1.5D/2D/2.5D/3D/3.5D/4D | Φ180x5 | Φ170x10 | 285 | 240 | 211 | 8-Φ23 | 24 | 3 |
| 200 | 1.5D/2D/2.5D/3D/3.5D/4D-10D | Φ245x8 | Φ229x13 | 340 | 295 | 266 | 12-Φ23 | 24 | 3 |
| 250 | 1.5D/2D/2.5D/3D/3.5D/4D-10D | Φ299x10 | Φ279x13 | 405 | 355 | 319 | 12-Φ26 | 30 | 3 |
| 300 | 1.5D/2D/2.5D/3D/3.5D/4D-10D | Φ340x8 | Φ324x13 | 460 | 410 | 370 | 12-Φ26 | 30 | 3 |
Notes: Pipeline diameter is less than 12 inches, internal ceramics are assembled by integral ceramic pipe technology; diameter is more than 12 inches, assembled by ceramic tile masonry technology.
